Quick Details

  • Type: High Power LED
  • Model Number: HH-1WP2IR13-T
  • Chip Material: InGaN
  • Emitting Color: IR
  • Power: 1-3W
  • Viewing Angle(°): 60/90/120/140 /175degree
  • Color Rendering Index(Ra): 80
  • Operating Temperature(℃): -20 - 80
  • Storage Temperature(℃): -30 - 100
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HHE
  • Certification: CE, RoHS, CE,RoHS,RoHS&SGS
  • led chip Emitted Colour: infra red led
  • 1w led Other colors: red,yellow,blue,green,white,warm white and cool white,bi-color,rgb,etc
  • Forward Voltage: 1.5-1.8v
  • Max. Forward Current: 350mA
  • 1-10w power angle: 60/90/120/140 /175degree
  • led spectrum: 730nm 810nm 850nm 940nm
  • 1w chip Package Type: Through Hole
  • Life Time: 100000h
  • 1wChip brand: Epistar,brigelux,Epileds (Available)

Packaging & Delivery

Packaging Details: 730nm 810nm 850nm 940nm 1w 3w 5w 10w ir high power led 3 years warranty Outer package:In carton Inner package:Anti-static plastic bags or in tape
Delivery Detail: Within 3-7 working days

Specifications

1w to 10w ir led diode laser
all color available
free samples available
Low light decay
3 years warrantee

0.3% light decay 730nm 810nm 850nm 940nm 1w 3w 5w 10w ir high power led 3 years warranty







Product Description



  0.3% light decay 730nm 810nm 850nm 940nm 1w 3w 5w 10w ir high power led 3 years warranty la

Product Description:

Product Name
 0.3% light decay 730nm 810nm 850nm 940nm 1w 3w 5w 10w ir high power led 3 years warranty
1wChip brandEpistar,brigelux,Epileds (Available)
spectrum730nm,810nm,850nm,940nm
High intensity20-80mw
Working  Voltage 1.0-2.0v
Working current350mA/w

 Available Color

Warm White/ White/Cold white, Red,Green,Blue,Yellow,RGB,UV IR and so on

Operating Temperature Range

-20°C to  80°C

Storage Temperature Range

-30°C to 100°C

Lifespan

100,000h





Technical Parameter for 3w led: (White,Green,Blue,Red,YellowUV)

Modeal            Chip MaterialEmitting Color                Forward voltage (V)Forward current (mA)Luminous (Lm)Viewing angle (Deg)
HH-3WP2DWInGan2500-3500K3.0-3.6V700mA190-210

140

 HH-3WP2CWInGan3500-5500K3.0-3.6V700mA200-220140
HH-3WP2BWInGan5500-7000K3.0-3.6V700mA200-220120
HH-3WP2AW1InGan7000-9000K3.0-3.6V700mA200-220140
HH-3WP2AW2InGan9000-12000K3.0-3.6V700mA200-220140
HH-3WP2AW3InGan12000-15000K3.0-3.6V700mA180-200140
HH-3WP2AW4InGan15000-25000K3.0-3.6V700mA180-200140
HH-3WP2BRAIGainpRed 620-630nm2.0-2.4V

700mA

80-100140
HH-3WP2JRAIGainpRed  660-670nm2.0-2.4V700mA30-40140
HH-3WP2DGInGanGreen 520-530nm3.0-3.6V700mA120-140140
HH-3WP2DBInGanBlue 460-470nm3.0-3.6V700mA30-40140
HH-3WP2CYAIGainpYellow 590-595nm2.0-2.4V700mA80-100140
HH-3WP2CPInGanPurple 385-420nm3.0-3.6V700mA6-7140


   1/3W LED diode dimension:

The size of 1/3w led 120 degree: 60,90,120 and 140 degree are available

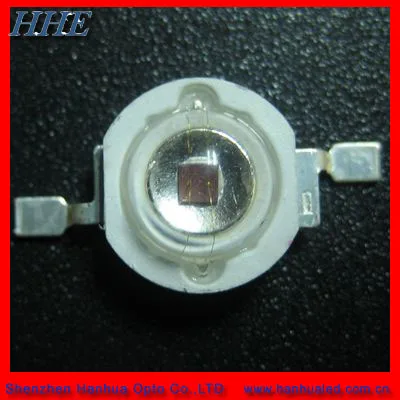

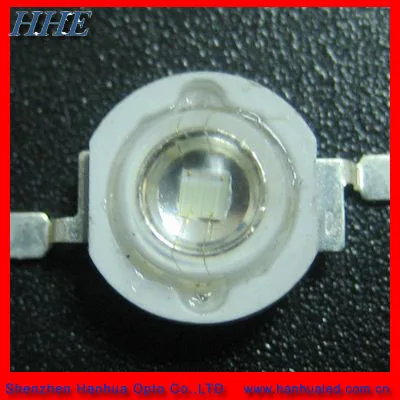

  Photo show:




led Advantage :

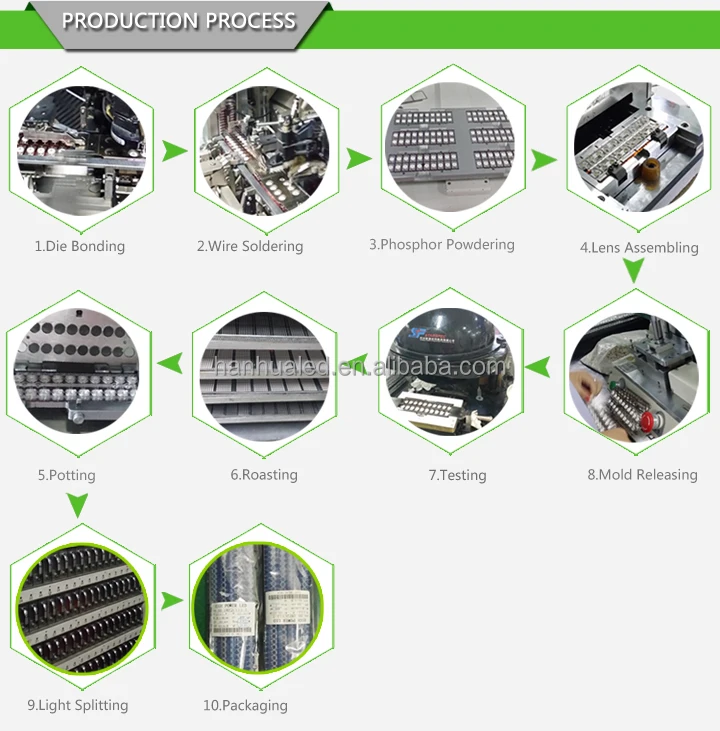

high power led Process:




Certifications:

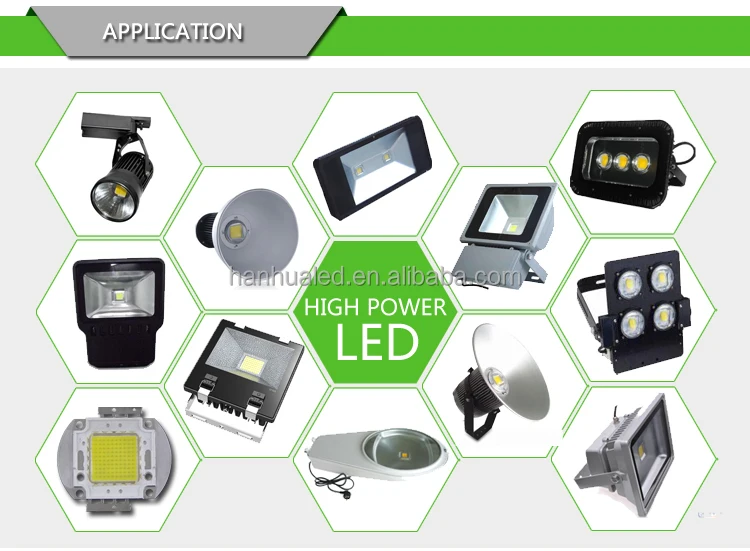

Applications:

 Street light, torch lights, automotive exterior, edge-lit signs, decorative, cove lighting, advertising signs, circuit board, computer, monitor, portable equipment, project building, status indicator, telephone, traffic signal lights and automotive, channel letter lighting, etc...
