Quick Details

  • Type: SMD LED
  • Model Number: HH-SMD7060IRC
  • Chip Material: AlGaInP
  • Emitting Color: IR
  • Optical Attenuation(%): 0.3
  • Power: 0.5w/1w/3w
  • Power Dissipation: 0.3
  • Viewing Angle(°): 120 Degree
  • Operating Temperature(℃): -30 - 80
  • Storage Temperature(℃): -40 - 100
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HHE
  • Certification: CE, RoHS
  • Max. Reverse Current: 10μA
  • Max. Forward Voltage: 1.5-2.0V
  • Max. forward Current: 700mA
  • Max. reverse Voltage: 5v
  • product name: 7060 SMD led
  • color: IR
  • Package Type: Surface Mount
  • life span: 100000hours
  • quality guarantee: 2 years
  • Chip Brand: Taiwan Epistar Chip

Packaging & Delivery

Packaging Details 7060 led Inner packing: Antistatic plastic bag or in tape Outer packing: In carton
Delivery Time Shipped in 3 days after payment

  3W 7060 740nm high power smd led for led grow lights

Product Description



Product name7060 SMD LED lamp bead
Product type HH-SMD7060IRC
Power0.5W/1W/2W/3W
Chip typeEpileds/epistar chip
Chip number

1PCS

Light color

white/red/green/blue/yellow/orange/pink/UV(365-440NM)/IR(660-960nm), etc.

White Color temperature3000-3200K,4000-4500K,6000-6500K,20000-25000K
Working voltage1.0-3.8V
Working current150mA/350mA/500mA/700mA



Other smd led  we can provide are 2835, 3528, 5050, 3535, 7060, 6028, 3014, 020, 1206, 7020, 3030 etc.

Need more information, please contact us. Thanks!



infrared LED chips with different wavelengths can be applied in extensive devices, for example:

1. 940nm: suitable to be used in remote controller, such as remote controllers for household appliances.



2. 800-810nm: suitable to be used in medical treatment appliances, space optical communication, infrared illumination and the pumping sources of the solid-state lasers.



3. 830nm: suitable to be used in the automated card reader system in freeway.



4. 840nm: suitable to be used in colored zoom infrared waterproof video camera.



5. 850nm: suitable to be used in video cameras that are applied in digital photography, monitoring system, door phone, theftproof alarm and so on.



6. 870nm: suitable to be used in video cameras in marketplace and crossroad.

Detailed Images

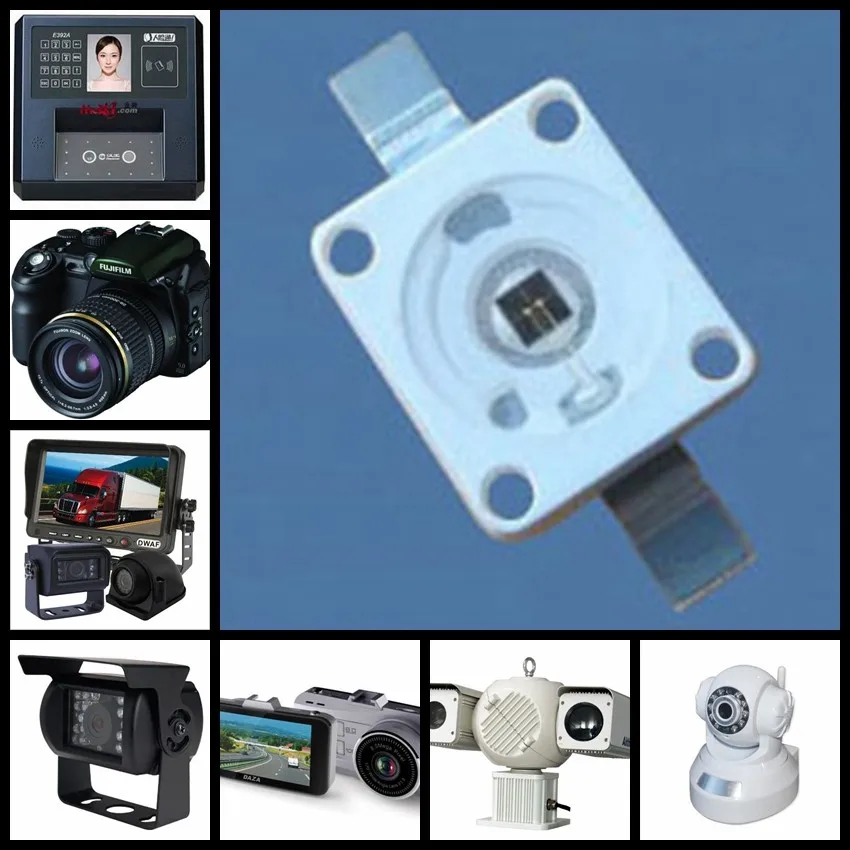

Applications

1. car real view camera

2. automobile data recorder

3. infrared camera

4.real view monitoring

5. face recognition attendance machine

6. forest camera

7. wireless network monitoring

Products Process

Company Information



FAQ

1.What will be the delivery time?

A:We have large quantities in stock for normal color and size ,and for special color and size.It needs 3-5 days to customize.100K units is available for most of our models in normal color and size.



2.What will be the price terms?

A: We can accept FOB, EXW, CIF normally and other terms according to customers special requirement.

3. What will be the types of payment?

A: The payments we can accept are T/T transaction, Paypal, Western Union, Escrow, Money Gram and Chinese bank.



4. what is the color temperature for white light?

A:  HHE 's LED Lighting offer leds in warm, natural, pure and cool white with color temperatures measured in Kelvin (K).

The lower the color temperature is, the warmer the light given by the LED:

*Warm white = 2700K-3500K

*Natural white = 4000K-6000K

*Pure white = 6000K-9000K

*Cool white = 9000K-20000K

5.What is CRI ( Color Rendering Index)?

A: CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. For leds, the CRI is mostly 70-80Ra.

6. what is your chip brand?

A: The chips we use usually are from American Cree and bridgelux, Taiwan Epistar and Eplieds, and Xiamen Sanan and Changelight



7.what relationship is between viewing angle and brightness of led?

A: For the leds with same chip, the smaller of the angle is, the brighter of the led is. Besides, the deeper of the holder dips

into the lens is, the bigger of the angle is.

8.What will be the types of shipping?

A: For the shipment, you can choose DHL, UPS,TNT,EMS,ARAMEX, FedEx, City-link line, China post, by air mail, and by sea, etc.
